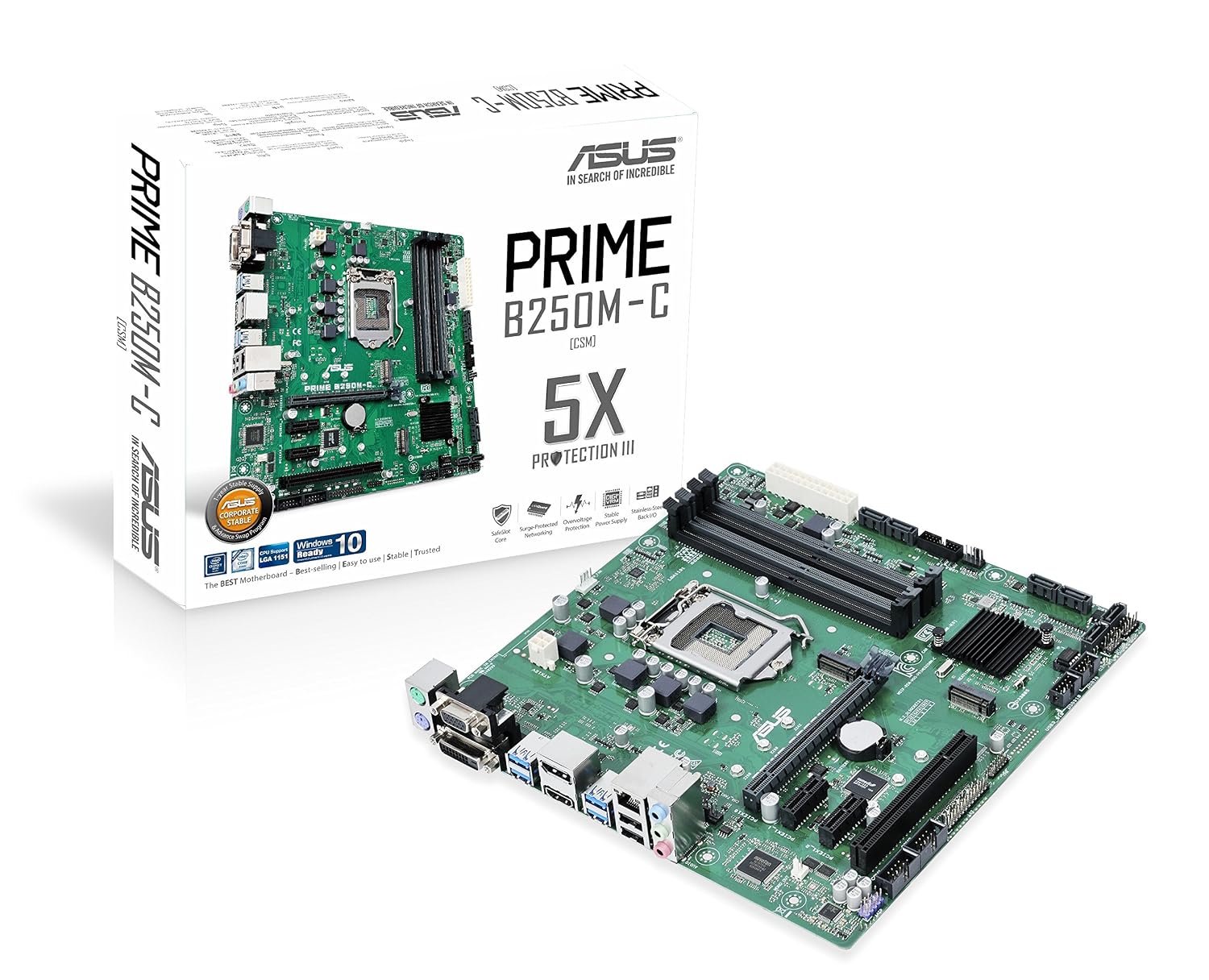

ASUS PRIME B250M-C Micro ATX - LGA1151 Motherboard

ASUS PRIME B250M-C Micro ATX - LGA1151 Motherboard

Available as Special Order
Not rated yet
  • Maximize your connectivity and speed with integrated Dual M.2 slots with Intel Optane Memory compatibility, front panel USB 3.0.
  • 5X Protection III Hardware-level safeguards provide component longevity and reliability
  • FanXpert 2 delivers advanced fan control for dynamic cooling
  • On-board 8-Channel Audio using premium Japanese capacitors provides warm, immersive crystal-clear surround sound
  • Front panel USB 3.0 connectivity for easy access and accelerated data transfers

  • $113.67
? Ask a question (0)

ASUS Commercial Series

ASUS is the world's biggest and best-known motherboard brand, renowned for our user-focused Design Thinking. We understand the business importance of stability, easy manageability and security. That's why ASUS commercial series boards include, 24/7 stability, smart BIOS tools and guaranteed long-term availability, and our world-class after-sales service effectively reduces many hidden costs of ownership — maximizing your investment over the product lifecycle.


Dependable Reliability

  • SafeSlot Core

    •

  • Surge-Protected Networking

    •

  • Overvoltage Protection

    •

  • Stable Power Supply

    •

  • Stainless-Steel Back I/O

Prime 200 motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.

SafeSlot Core

Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.


ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.

LANGuard

Pumped-up throughput. 2.5X higher surge tolerance.

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DIGI+ VRM

Precision control for stable power!

ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

ESD Guards

Electrostatic discharge protection

ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

Against moisture and corrosion

Against moisture and corrosion

This innovative moisture-resistant coating provides motherboard protection, and combats the higher levels of humidity that build up in densely-populated environments, such as factories, libraries, data centers and internet cafes. It even minimizes internal corrosion by preventing the adhesion and migration of moisture — prolonging the life of your motherboard.

24/7 Reliability Test

Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.

Efficient Management

ASUS Remote Management Tool

The ASUS Remote Management Tool provides routine office PC maintenance, including easy BIOS updates and automatic simultaneous syncing across multiple devices.
  • Quick BIOS update

    Real-time BIOS updates through USB or the hard drive

  • Easy BIOS setting

    Easily customize CPU, fan, or system settings

  • System monitoring

    Instantly monitor system's temperature, power, or fan status

  • Remote power management

    Control wake up/ shut down/ reset/ hibernate modes

  • Customize DMI value

    Retrieve DMI information, and edit DMI string in real time

Commercial BIOS Kit

ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!
  • ‧BIOS Value Edit Tool - Customize the BIOS options.
  • ‧BIOS Boot Logo Tool - Brand your builds with a customized boot logo.
  • ‧OEM Activation (OA) Tools - Add or remove the OEM Activation key.
  • ‧Desktop Management Interface (DMI) - Easily add customer information, such as company name, to the BIOS.
  • ‧Intel® Management Engine (Intel® ME) Driver - Update the Management Engine without flashing the whole BIOS.


*Please contact local representative to obtain the related BIOS tools for manufacturing requests.

Easy Assembly

Box Headers

All USB 3.0 and 2.0 headers are box style, enabling fast connector installation and preventing pin damage.

Fixed-position Connectors

Connector positions on ASUS Commercial motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.

Color-coded Connectors

Color-coded connectors enable easy identification and cable-matching, speeding up the production line. investments in supporting hardware.

Q-Slot

Effortless PCI Express component removal

The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Q-DIMM

Easy memory removal

Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – removing memory is that simple!

Intel CPU and chipset features

Intel® B250 Chipset

The Intel® B250 is a single-chipset design that supports 7th & 6th-generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for faster data retrieval. Intel® B250 chipset also supports iGPU functionality, so you'll enjoy the very latest Intel integrated graphics performance.



Ready for 7th Generation and 6th Generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors

The ASUS B250M-C motherboard supports 7th Generation and 6th Generation Intel Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors in the LGA1151 package. Integrated graphics, memory and PCI Express controllers support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
  • Chipset
    Intel B250
  • CPU Socket Type
    LGA 1151
  • Form Factor
    Micro ATX
  • Price Range
    Under 50 BHD
  • Manufacturer
    Asus
  • Weight
    1 kg
  • SKU
    ASUS PRIME B250M-C

Product questions

No questions yet. Be the first to ask the question!
Customer reviews
There are no comments yet. Be the first to leave a comment
Please sign in to add review
  • CPU
    Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B250
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Maximum shared memory of 1024 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16
    2 x PCIe 3.0/2.0 x1
    1 x PCI
  • Storage
    Intel® B250 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
    6 x SATA 6Gb/s port(s)
    Intel® Optane™ Memory Ready *4
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC *1
    - Supports : Jack-detection, Front Panel Jack-retasking
  • USB Ports
    Intel® B250 Chipset :
    6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® B250 Chipset :
    6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 5 Phase digital power design
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Digi+VRM
  • Operating System Support
    Windows® 10 , 64bit
    Windows® 8.1 , 64bit *2
    Windows® 7 , 32bit/64bit *2

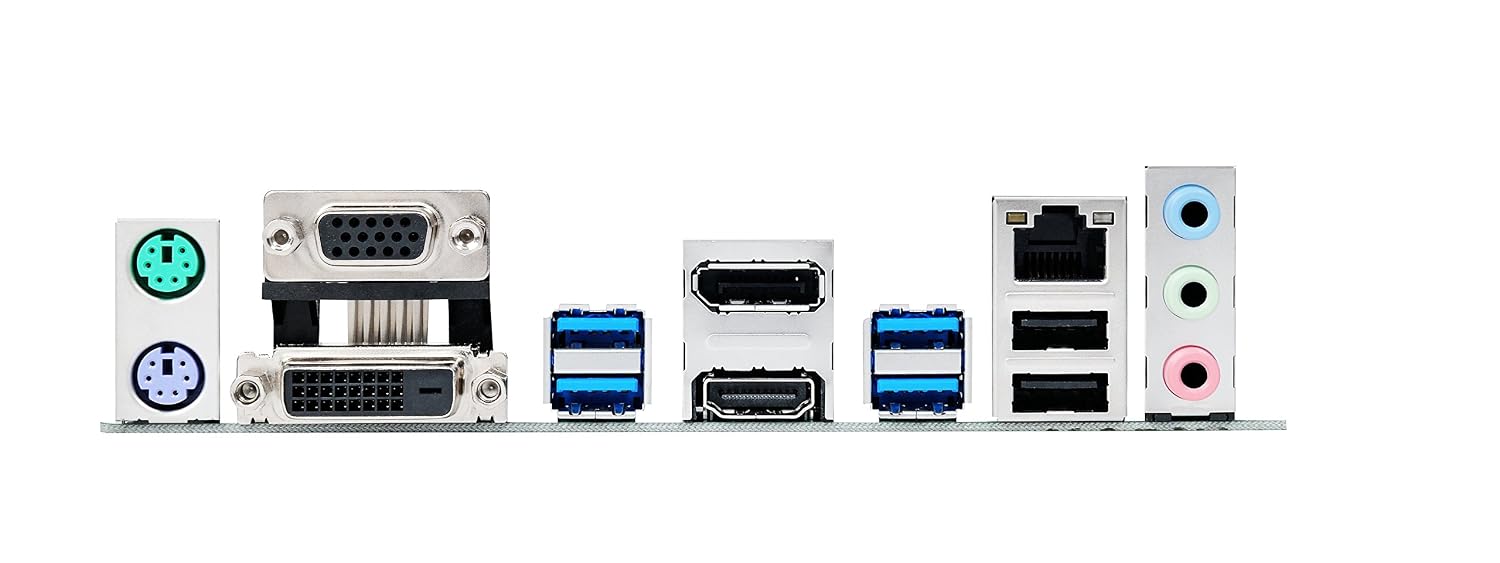

  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 1 (blue)
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x MONO out header *3
    1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
    1 x LPT header
    2 x COM port(s) connector(s)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Internal speaker connector(s)
    1 x System panel(s)
    1 x Chassis Intrusion connector(s)
    1 x 14-1 pin TPM connector
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUSbackup, LOGO flash, ME update, DMI value edit, BIOS value edit
  • Manageability
    WfM 2.0, DMI 3.0, WOL, WOR,PXE
  • Support Disc
    Drivers
  • Form Factor
    uATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
  • Note
    *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
    *2: * Windows® 8.1 (64-bit) and Windows® 7 (32/64-bit) are only supported when using 6th Generation Intel® Processors
    *3: Use with amplified speaker is suggested.
    *4: Intel® Optane Technology is only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
