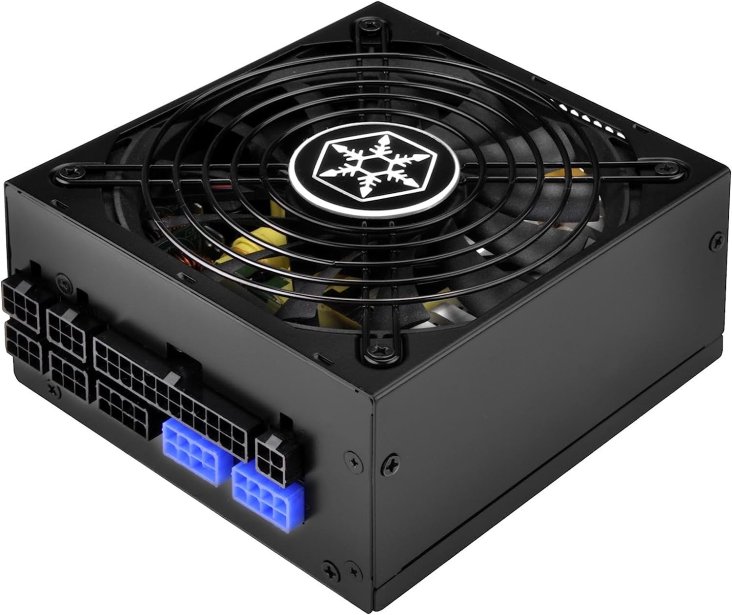

SilverStone SX800-LTI 800W SFX-L 80+ Titanium Full Modular Power Supply

SilverStone's SFX-L Power Supply Series

SilverStone offers two product lines within its SFX-L family of power supply products: SX for units with a 120mm fan, and the exclusive Nightjar (NJ) series of silent, fanless models.

The SX800-LTI takes advantage of the versatile SFX-L form factor

For small form factor enthusiasts, standard SFX power supplies offer an excellent combination of size, power, and affordability. At 100mm deep, however, they are limited to 92mm fans. SilverStone longer variation of the SFX form factor called SFX-L. At 130mm long, an SFX-L power supply has space for a 120mm fan, thus its maximum load noise is not only lower in intensity (due to a slower fan speed), but also lower in pitch (due to larger fan size).
• Silent running 120mm FDB fan with advanced semi-fanless operation
• Supports quad PCI-E 8/6pin connectors
• Utilizes all Japanese capacitors

Efficiency and power in one package:

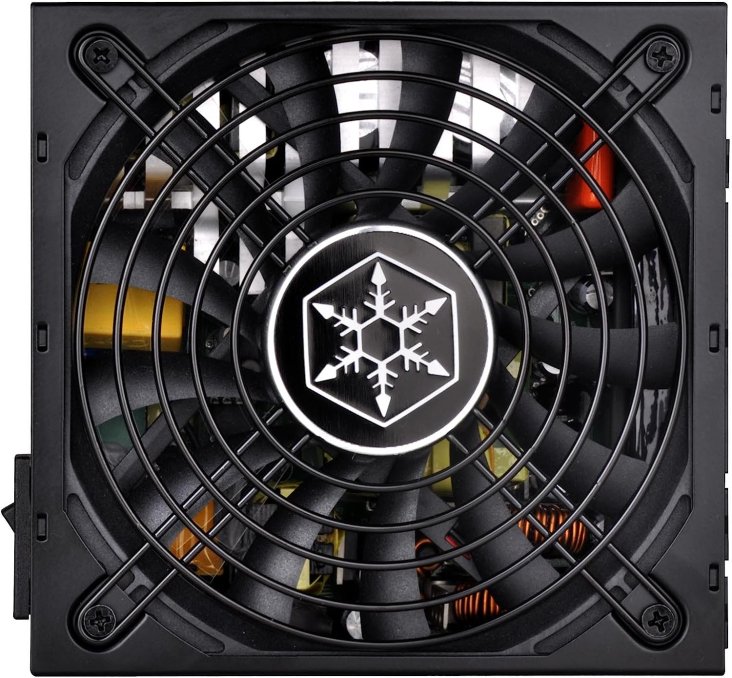

Semi-fanless operation

Ultra-quiet 120mm fan with intelligent RPM control provides cool performance and silent operation with minimum of 18dBA during fan operation.

The fanless mode operation deactivates when PSU loading reaches 20%.

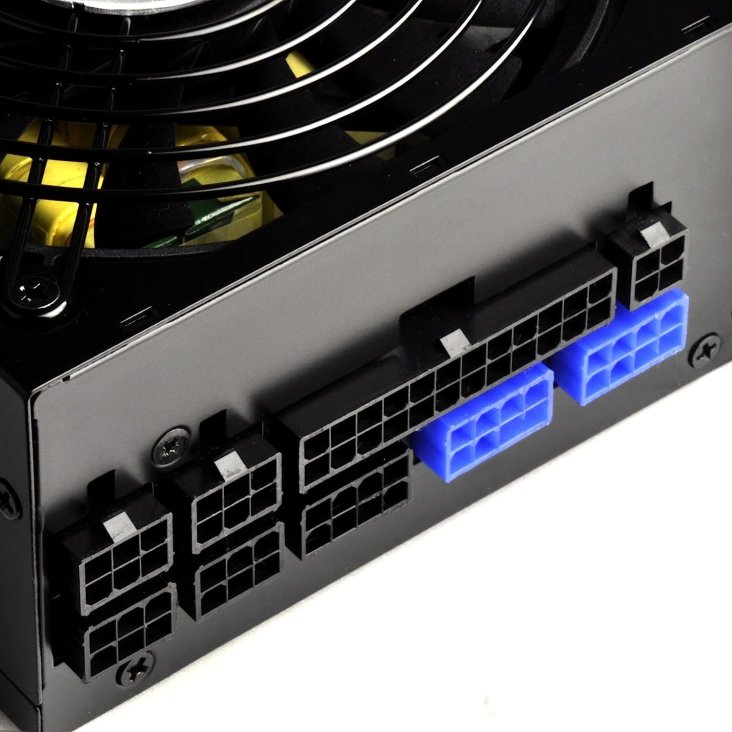

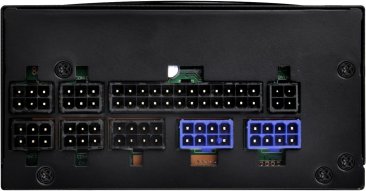

Extensive connectivity

1 x 24 / 20-Pin motherboard connector（300mm）

1 x 8 / 4-Pin EPS / ATX 12V connector（400mm）

2 x 8 / 6-Pin PCIE connector（400mm / 150mm）

2 x 8 / 6-Pin PCIE connector（550mm / 150mm）

12 x SATA connector（300mm / 200mm / 100mm / 100mm x 3）

3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm）

1 x 4-Pin Floppy adapter connector（100mm）

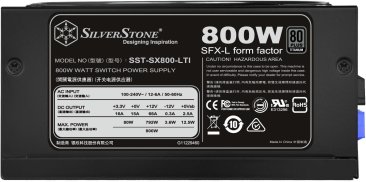

Big power output in a small package

+3.3V: 16A Max

+5V: 15A Max

+12V: 66A/792W Max
