ASUS TUF X299 MARK 1 LGA2066 DDR4 M.2 USB 3.1 DUAL LAN X299 ATX Motherboard

ASUS TUF X299 MARK 1 LGA2066 DDR4 M.2 USB 3.1 DUAL LAN X299 ATX Motherboard

Available as Special Order
Not rated yet
  • Designed for 7th generation LGA2066 socket Intel Core X-Series processors to maximize connectivity and speed with dual M.2, front panel USB 3.1 Type-C connection, Intel VROC, and Intel Optane Memory compatibility
  • Ultimate Protection with Thermal Radar 3 for customizable total system cooling and a 5-Year Warranty for guaranteed reliability built on Military Grade engineering
  • Dual Patent-pending SafeSlots featuring an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
  • Thermal Armor protective shielding with TUF Fortifier backplate and VGA holder provides ducted cooling plus structural rigidity with added protection for the next-generation of graphics cards
  • AURA Sync RGB Lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products

  • $323.32
? Ask a question (0)

Overview

Ready for hardcore 24/7 operation, the TUF X299 Mark 1 possesses the looks, overclocking durability and optimized cooling The Ultimate Force (TUF) motherboards are famous for. Thermal Armor and SafeSlot provide ducted airflow and PCIe rigidity, while Thermal Radar 3 and TUF Detective 2 provide superior cooling and system monitoring.

At a Glance

  • Designed for 7th generation LGA2066 socket Intel Core X-Series processors
  • Ultimate Protection with Thermal Radar 3
  • Dual Patent-pending SafeSlots
  • Thermal Armor protective shielding with TUF Fortifier backplate and VGA holder
  • AURA Sync RGB Lighting


Ultimate Cooling

TUF Thermal Armor employs the fan at the PCH area to provide boosted airflow for rapid cooling and make sure temperatures stay low across the board.


















Overclocking Design

A dedicated base-clock generator designed for 7th Generation Intel processors allows overclocked base clock (BCLK) frequencies up to or beyond 425MHz(TBC). This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights.

24/7 Reliability

TUF X299 Mark 1 delivers great strength and cooling via exclusive TUF Fortifier. A reinforced backplate ensures that the motherboard doesn't buckle under the weight of heavy graphics cards and CPU coolers, minimizing the risk of damaged circuitry from bowing and bending. The VGA holder is designed to minimize the risk of damaged circuitry of VGA and motherboard from bending and prevent slot damage to ensure long term usage.

SafeSlot

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process to integrate the slot with fortifying metal support, the slot is then firmly anchored to the board through additional solder points.


TUF Components

Certified military-grade TUF chokes offer unbeatable durability in order to maximize the lifespan of your system while TUF capacitors offer +20% temperature tolerance and 5x-longer lifetime.



  Prime X299-Deluxe Prime X299-A STRIX X299-E Gaming TUF X299 Mark I TUF X299 Mark II
Chipset Intel X299 Intel X299 Intel X299 Intel X299 Intel X299
Form Factor ATX Form Factor ATX Form Factor ATX Form Factor ATX Form Factor ATX Form Factor
Memory Slot 8 x DIMM, Max. 128GB, DDR4 8 x DIMM, Max. 128GB, DDR4 8 x DIMM, Max. 128GB, DDR4 8 x DIMM, Max. 128GB, DDR4 8 x DIMM, Max. 128GB, DDR4
Maximum Capacity 3600MHz OC 3600MHz OC 3600MHz OC 3600MHz OC 3600MHz OC
PCIe 3.0 x16 3x PCIe 3.0 x16 SafeSlots (supports triple @ x16/x16/x8); 1x PCIe 3.0 x16 (compatible with PCIe x1 and x4 devices); 2x PCIe 3.0 x1 3x PCIe 3.0 x16 SafeSlots (supports triple @ x16/x16/x8); 2x PCIe 3.0 x4; 1x PCIe 3.0 x1 3x PCIe 3.0 x16 SafeSlots (supports triple @ x16/x16/x8); 1x PCIe 3.0 x4; 2x PCIe 3.0 x1 3x PCIe 3.0 x16 SafeSlots (supports triple @ x16/x16/x8); 2 x PCIe 3.0 x4 3x PCIe 3.0 x16 SafeSlots (supports triple @ x16/x16/x8); 1x PCIe 3.0 x4; 2x PCIe 3.0 x1
M.2 Dual M.2 Support Dual M.2 Support Dual M.2 Support Dual M.2 Support Dual M.2 Support
USB 3.1 3x USB 3.1 Gen 2 Type A; 1x USB 3.1 Gen 2 Type C 1x USB 3.1 Gen 2 Type A; 1x USB 3.1 Gen 2 Type C 1x USB 3.1 Gen 2 Type A; 1x USB 3.1 Gen 2 Type C 1x USB 3.1 Gen 2 Type A; 1x USB 3.1 Gen 2 Type C 2x USB 3.1 Gen 2 Type A
Thunderbolt 3 Yes, ThunderboltEX 3 card included Yes, with add on PCI card Yes, with add on PCI card Yes, with add on PCI card Yes, with add on PCI card
Wi-Fi 802.11AD WiGig; 802.11AC MU-MIMO No 802.11AC MU-MIMO No No
ASUS Aura Sync RGB Lighting Yes Yes Yes Yes Yes
  • Chipset
    Intel X299
  • CPU Socket Type
    LGA 2066
  • Form Factor
    ATX
  • Price Range
    100 BHD - 150 BHD
  • Manufacturer
    Asus
  • Weight
    1.6 kg
  • SKU
    ASUS TUF X299 MARK1

Product questions

No questions yet. Be the first to ask the question!
Customer reviews
There are no comments yet. Be the first to leave a comment
Please sign in to add review
  • CPU
    Intel® Socket 2066 Core™ X-Series Processors
    * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® X299
  • Memory
    Intel® Core™ X-series Processors (6-core above)
    8 x DIMM, Max. 128GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Intel® Core™ X-series Processors (4-core)
    4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support
    Supports NVIDIA® Quad-GPU SLI™ Technology
    Supports NVIDIA® 3-Way SLI™ Technology
    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD Quad-GPU CrossFireX™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    44-Lane CPU-
    3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
    2 x PCIe 3.0 x4 (max at x4 mode) *1
    28-Lane CPU-
    3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4)
    2 x PCIe 3.0 x4 (max at x4 mode) *1
    16-Lane CPU-
    3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
    2 x PCIe 3.0 x4 (max at x4 mode) *1
  • Storage
    Intel® X299 Chipset :
    1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    8 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology, Intel Rapid Start Technology*2
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN
    Intel® I211, 1 x Gigabit LAN, featuring Turbo LAN
    ASUS Turbo LAN Utility
  • Audio
    Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
    - Impedance sense for front and rear headphone outputs
    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - DTS Connect
    - DTS Headphone:X
    - Optical S/PDIF out port(s) at back panel
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
    Separate layer for left and right track, ensuring both sound deliver equal quality
  • USB Ports
    ASMedia® USB 3.1 Gen 2 controller :
    1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
    ASMedia® USB 3.1 Gen 2 controller :
    2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM)
    Intel® X299 Chipset :
    8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
    Intel® X299 Chipset :
    6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
  • Special Features
    OC Design - ASUS PRO Clock II Technology
    TUF Features:
    TUF ENGINE! Power Design :
    - 8 +2 Digital Phase Power Design
    - TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
    Ultimate COOL! Thermal Solution :
    - TUF Thermal Armor
    - Thermal Radar 3
    - TUF ICe
    Safe & Stable! Guardian Angel :
    "We Got Your Back!" Shape Force
    - Dust Defenders
    - TUF Fortifier
    - TUF VGA Holder
    - TUF ESD Guards 2
    - TUF LANGuard
    AURA :
    - Aura RGB Strip Headers
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    ASUS Exclusive Features :
    - USB BIOS Flashback
    - MemOK!
    - AI Suite 3
    - Ai Charger
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - Turbo LAN

    ASUS EZ DIY :
    - ASUS EZ Flash 3
    - ASUS USB BIOS Flashback
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

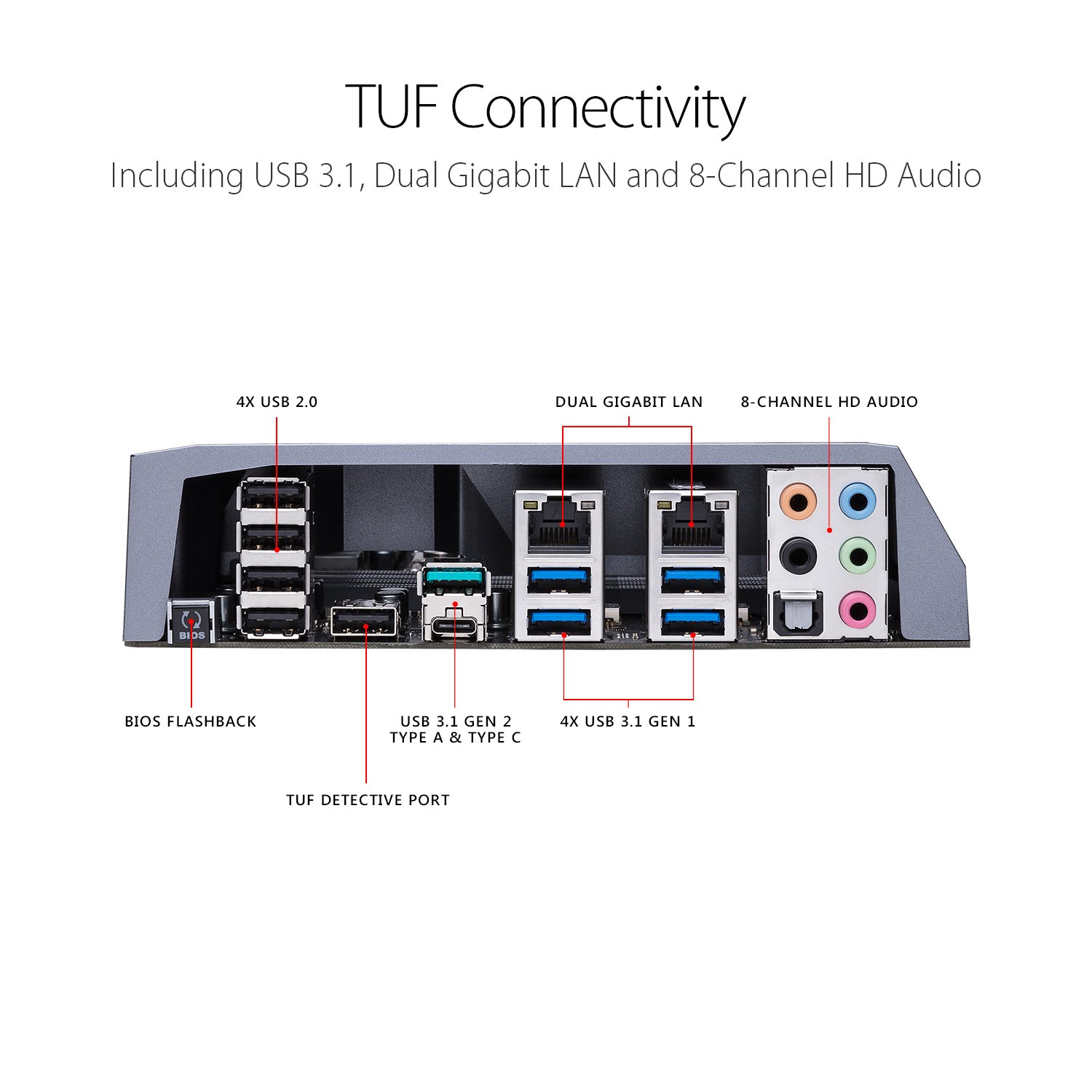

  • Back I/O Ports
    2 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
    4 x USB 3.1 Gen 1
    4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x USB BIOS Flashback Button(s)
    1 x TUF Detective USB port
  • Internal I/O Ports
    1 x AAFP connector
    1 x Aura RGB Strip Header
    2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    8 x SATA 6Gb/s connector(s)
    1 x VROC_HW_Key
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    5 x Chassis Fan connector(s)
    1 x Assistant Fan connector(s)
    1 x H_AMP fan connector
    1 x W_PUMP+ connector
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x System panel(s) (Q-Connector)
    1 x MemOK! button(s)
    3 x Thermal sensor connector(s)
    1 x Power-on button(s)
    1 x Clear CMOS jumper(s)
    1 x USB 3.1 Gen 2 front panel connector
    1 x CPU_OV jumper

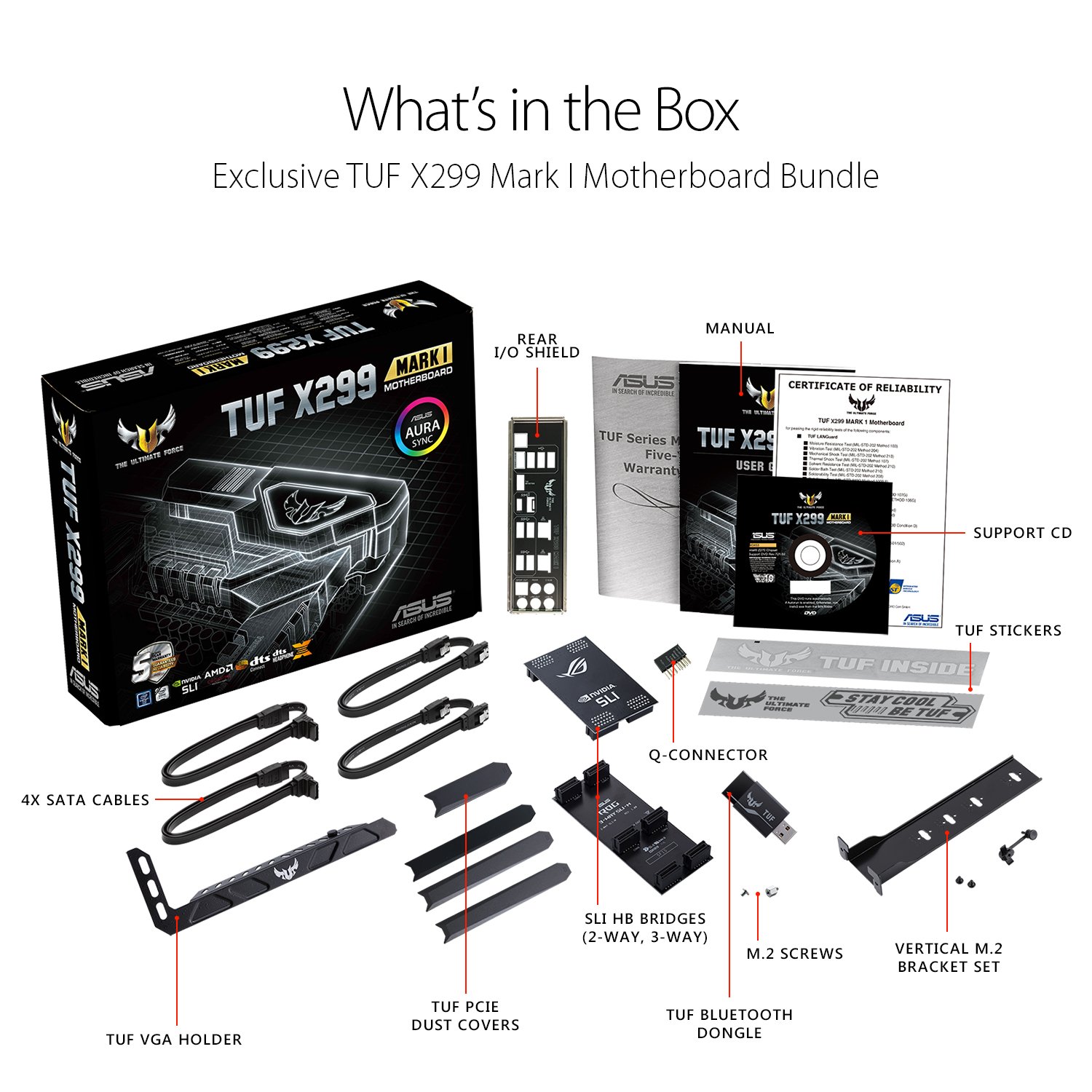

  • Accessories
    User's manual
    ASUS Q-Shield
    1 x Vertical M.2 bracket set
    4 x SATA 6Gb/s cable(s)
    1 x ASUS 2-Way/3-Way SLI bridge
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x Q-Connector
    1 x TUF Certification card(s)
    1 x TUF 5 Year Warranty manual(s) (by region)
    1 x TUF Inside sticker(s)(white)
    1 x STAY COOL BE TUF sticker(s)(gray)
    1 x TUF Dongle
    1 x Accessory Package(s):
    - 3 x PCIe x16 slot dust cover(s)
    - 1 x PCIe x4 slot dust cover(s)
    1 x TUF VGA Holder
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
    ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    1. PCIEX4_1 max. at x1 mode and or shared with PCIEX16_3 when using 28 / 16 lane CPU; PCIEX4_2 max. at x4 mode;
    2. SATA6G_5/6/7/8 share bandwidth with PCIEX4_2.
